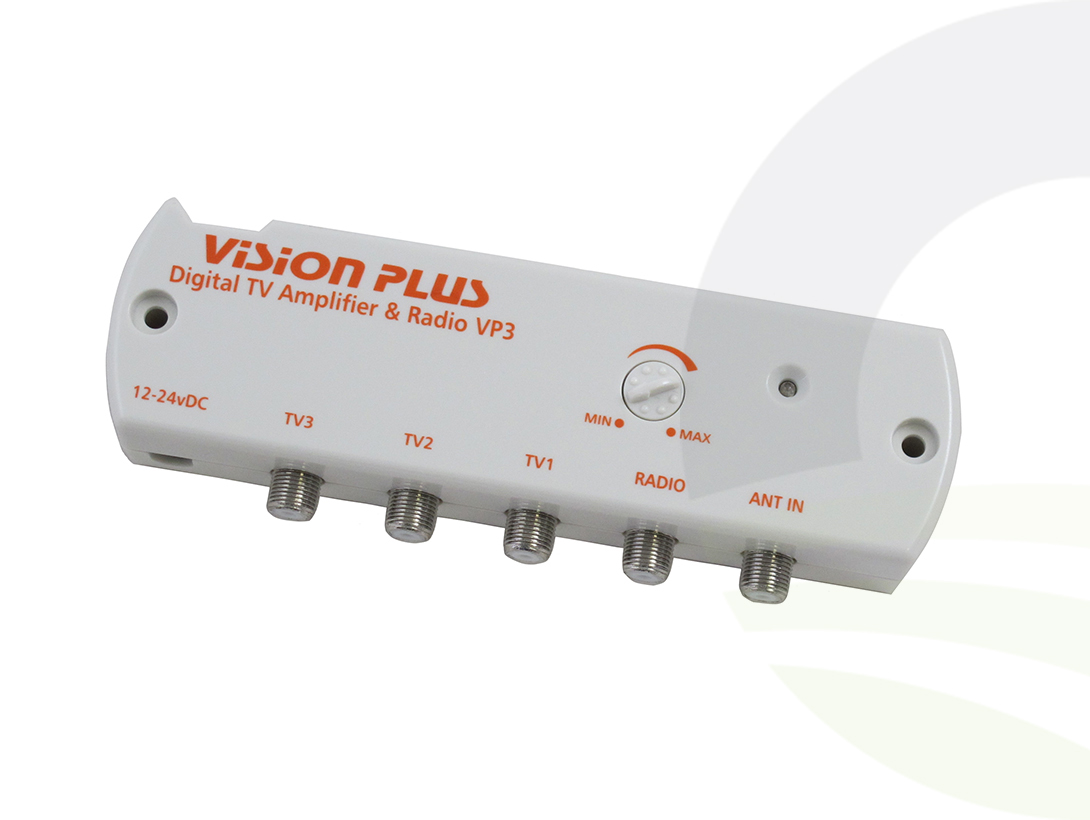

Vp3 Status Signal Amplifier
£31.99
Description
The Vision Plus VP3 Status Signal Amplifier is a powerful amplifier designed to enhance the performance of all non-amplified directional TV antennas. When used with a UHF/FM antenna, there is also a non-amplified outlet for FM Radio reception.
With high gain and low noise capabilities, you’ll be provided with great performance especially in areas where reception is poor, allowing you to enjoy your caravan or motorhome break with clear TV reception.
Code: LW0000003491
Features
- 1 FM radio output
- 3 TV outputs
- On/off switch
- Variable gain control
Specification
- Size: 157 x 46 x 28mm (W x H x D)
- Frequency UHF: 470-862MHz
- Frequency VHF: 40-230MHz
- Frequency FM: 88-108MHz
- Signal Handling: 80dBμV
- Power Consumption: 55mA
- Power Supply: 10.8-28V DC
- Output Impedance: 75ohms
- Gain Adjustment: 0 to ≃ 15dB
- Flatness: +1.5dB
- Noise Figure: 2.2dB
- Requires a 12-24 volt power supply from a fused auxiliary outlet fed from the battery, if wiring direct to a battery we recommend an in line fuse (max 5A) on the positive wire.
Description
The Vision Plus VP3 Status Signal Amplifier is a powerful amplifier designed to enhance the performance of all non-amplified directional TV antennas. When used with a UHF/FM antenna, there is also a non-amplified outlet for FM Radio reception.
With high gain and low noise capabilities, you’ll be provided with great performance especially in areas where reception is poor, allowing you to enjoy your caravan or motorhome break with clear TV reception.
